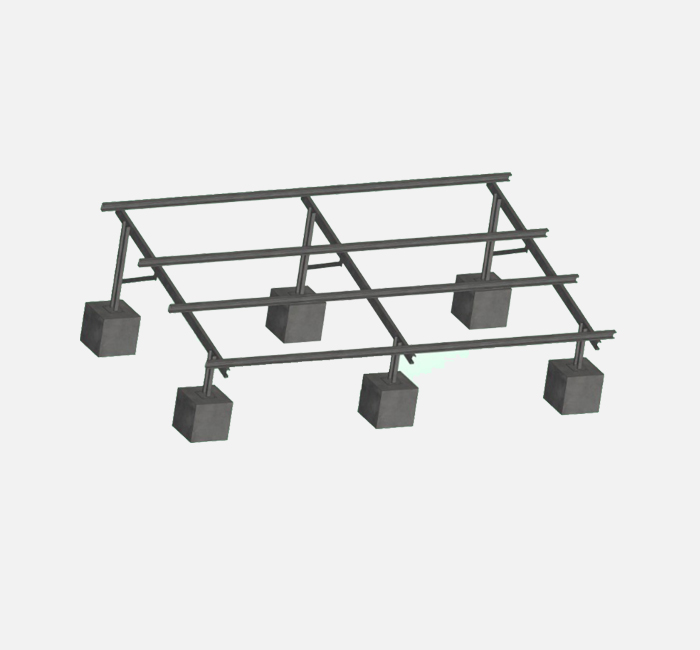

Hot Dip Galvanized Structures
Description
- Raw materials-JSW,
- Jindal HDG Steel-80 to 120 microns
- Yeild Strength-250 to 350mpa
Scope of Application:
Ground mounted & RCC roofs.
Wind Capacity:
upto 250 km/hr
Fastening type/ Roof Fixture:
Using J bolts with civil pedestal for RCC roofs. Piling and concreting for ground mounted installation.
Module Orientation
Landscape/Portrait
Requirements
Normal RCC rooftops with or without parapet wall. Suitable for all types of soils with load bearing capacity test.
Advantages
- Seasonal tilt or continuous tracking to obtain maximum efficiency.
- Fixed tilt for true south roofs.
- Engineering flexibility for car port and elevated structures. Special designs for coastal regions with wind speed. >200km/hr and galvanization not less than 120μm. High Corrosion resistance.
- Minimum micron used is 80μm.
- Elevation of 10 to 29 deg.
- STAAD analysis and design vetted by IIT, Chennai.

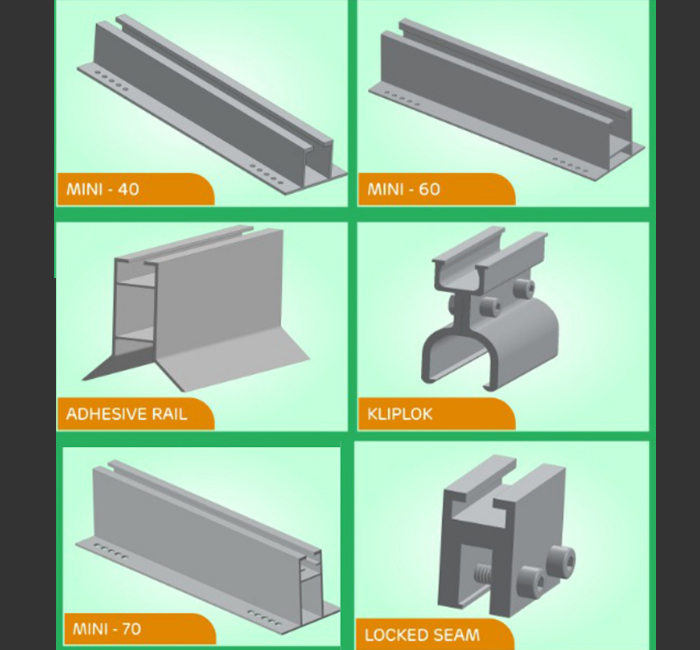

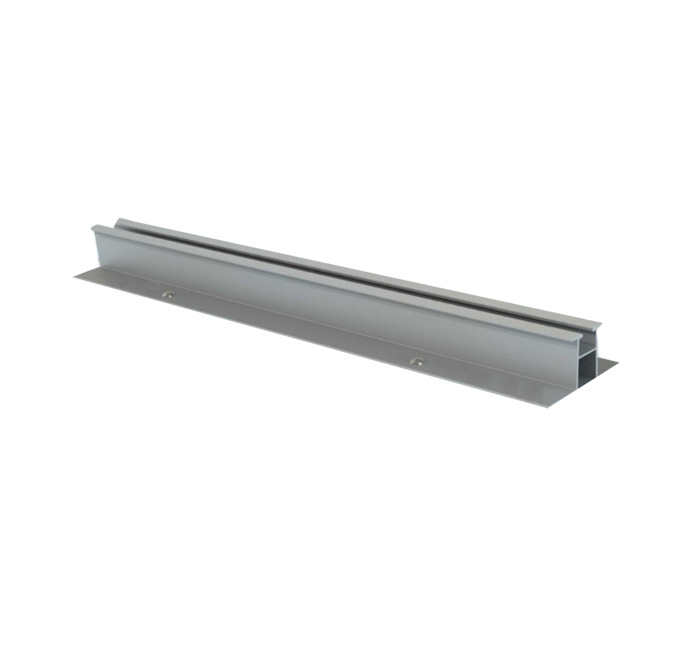

MINI 300
Description
- Length varying from 120mm to 5m and Height from 40mm to 100mm
- Profile Thickness of 2.5mm
- 6063 Aluminum T6 Grade.
Scope of Application:
Pitched roofs with Trapezoidal sheet metal or puff insulated sheet metal.
Wind Capacity:
150km/hr
Fastening type/Roof Fixture:
Rivets/self tapping metal screws / Adhesive solution over roofing sheets.
Module Orientation:
Landscape/Portrait
Requirements
- Sheet thickness: >0.5mm (steel or aluminum)
- Puff insulated sheet: Approval from manufacturer required
- Crest width: >22mm
- Module frame height: 30-50mm
Advantages
- Innovative and statically optimized partial rail system that is quick and easy to mount.
- Universal module clamps are suitable for portrait and landscape orientation.
- Optimized for storage, transport and compatible with all PV module.
- Air gap of 70 to 130mm ensured for heat dissipation.
- Anodized for corrosion resistance.
- Suitable for any Trapezoidal roofing sheet crest width. Available with both Penetrating and Non Penetrating type.
Products
Structures

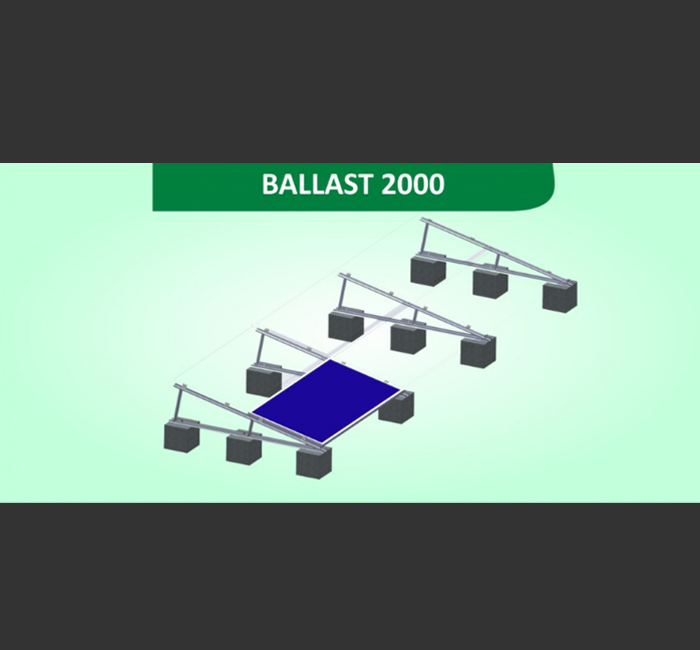

BALLAST 2000
Description
- Length of 1000mm and 2000mm
- Profile Thickness of 2.5mm
- 6063 Aluminum T6 Grade.
Scope of Application:
RCC roof or Pitched roofs with Trapezoidal sheet metal or puff insulated sheet metal
Wind Capacity:
170km/hr
Fastening type/ Roof Fixture:
Dead loads or Civil pedestals with Anchor fasteners over RCC roof, Rivets or self-tapping metal screws over Roofing Sheet
Module Orientation
Landscape/Portrait
Requirements
- Flat or Inclined RCC roof
- Sheet thickness: >0.5mm (steel or aluminum)
- Puff insulated sheet metal: Approval from manufacturer required
- Crest width: >22mm
- Module frame height: 30-50mm
Advantages
- Simple and easy installation.
- Suitable for RCC and Tin shed Roof.
- Suitable for kW to MW size projects.
- Cost effective for higher capacity projects.
- Elevation of 10 to 29 deg.
- Anodized for corrosion resistance.

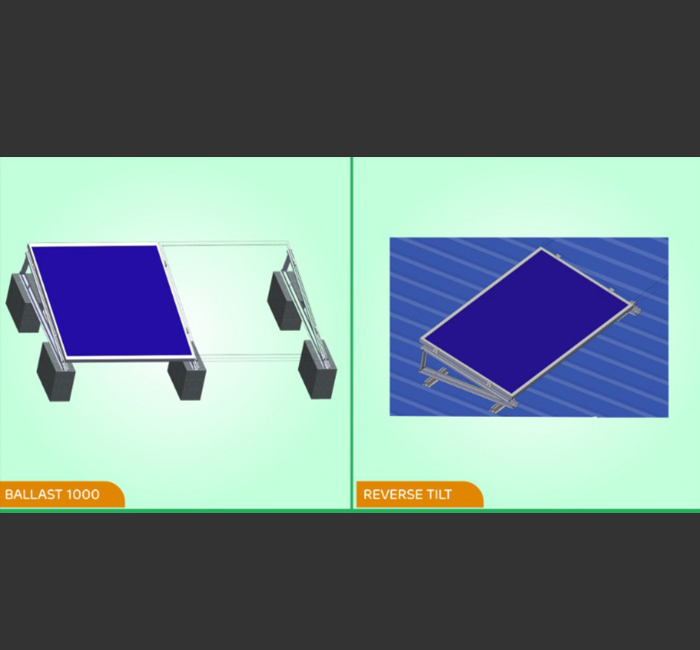

- Suitable for metal shed roofs with non south slope to reverse tilt.
- Proven STAAD report will be provided for wind load analysis. Distributed weight of MMS over RCC roof or sheet metal roof is less when compared to HDG structure.

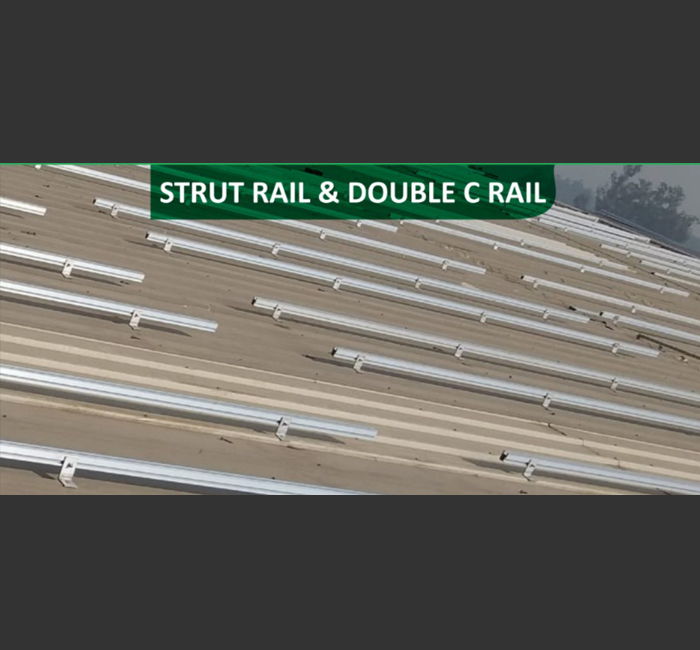

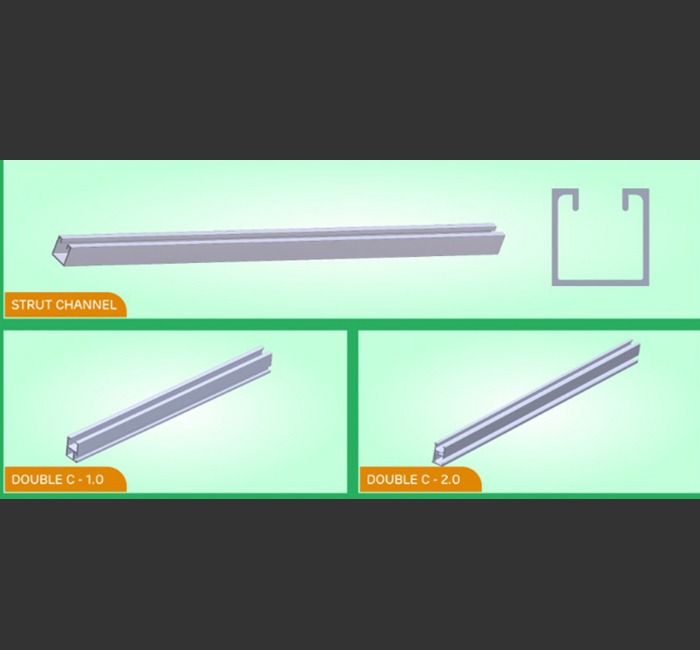

STRUT RAIL & DOUBLE C RAIL
Description
- Length varying from 1 to 5m with height of 40mm
- Profile Thickness of 2.35mm
- 6063 Aluminum T6 Grade.
Scope of Application:
Pitched roofs with Trapezoidal sheet metal or puff insulated sheet metal
Wind Capacity:
150km/hr
Fastening type/Roof Fixture:
Self tapping metal screws or Adhesive solution over roofing sheet
Module Orientation:
Landscape/Portrait
Requirements
- Sheet thickness: >0.5mm (steel or aluminum)
- Puff insulated sheet metal: Approval from manufacturer required
- Crest width: >22mm
- Module frame height: 30-50mm.
Advantages
- Simple and easy installation
- Available in Unistrut Channels, Plain Channels, Slotted Channels.
- Suitable for kW to MW size projects.
- Manufactured in Aluminum & Metal Sheet with hot dip galvanized.
- Anodized for corrosion resistance.
- Air gap of 70 to 130mm ensured.
